OWC Express 1M2 80G USB4 80Gb/s NVMe M.2 SSD Enclosure (Enclosure Only)

A bus-powered, fanless USB4 80Gb/s enclosure for a user-installed NVMe M.2 SSD, rated over 6,000MB/s on Thunderbolt 5 and USB4 80Gb/s hosts.

Check price on Amazon Compare

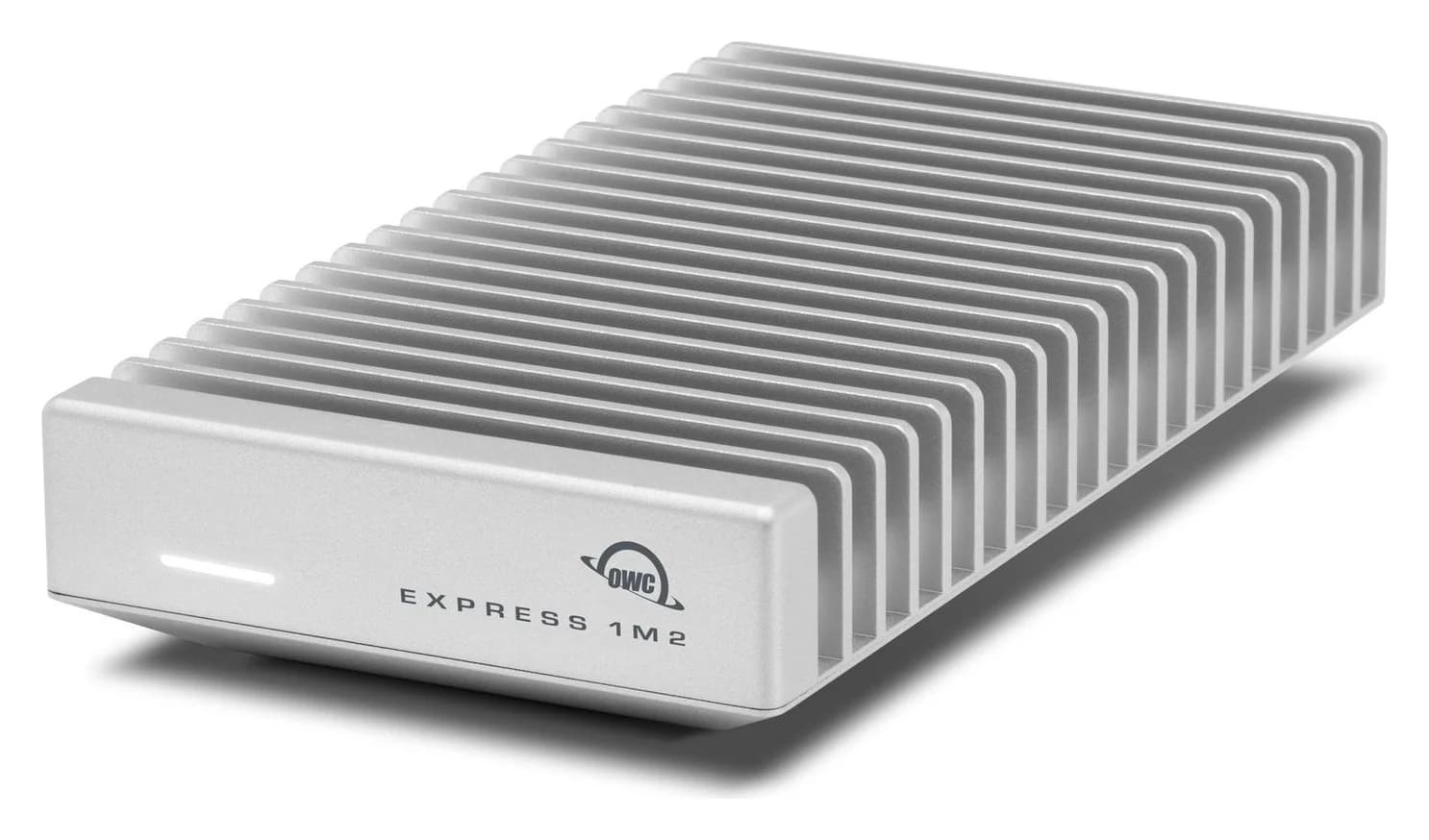

OWC Express 1M2 80G SSD enclosure, silver finned aluminium body with Express 1M2 front label and LED
1 / 5 · hero · hover to zoom

Photo: OWC

Ports & connections

Tap a port to see what it’s for.

Interface

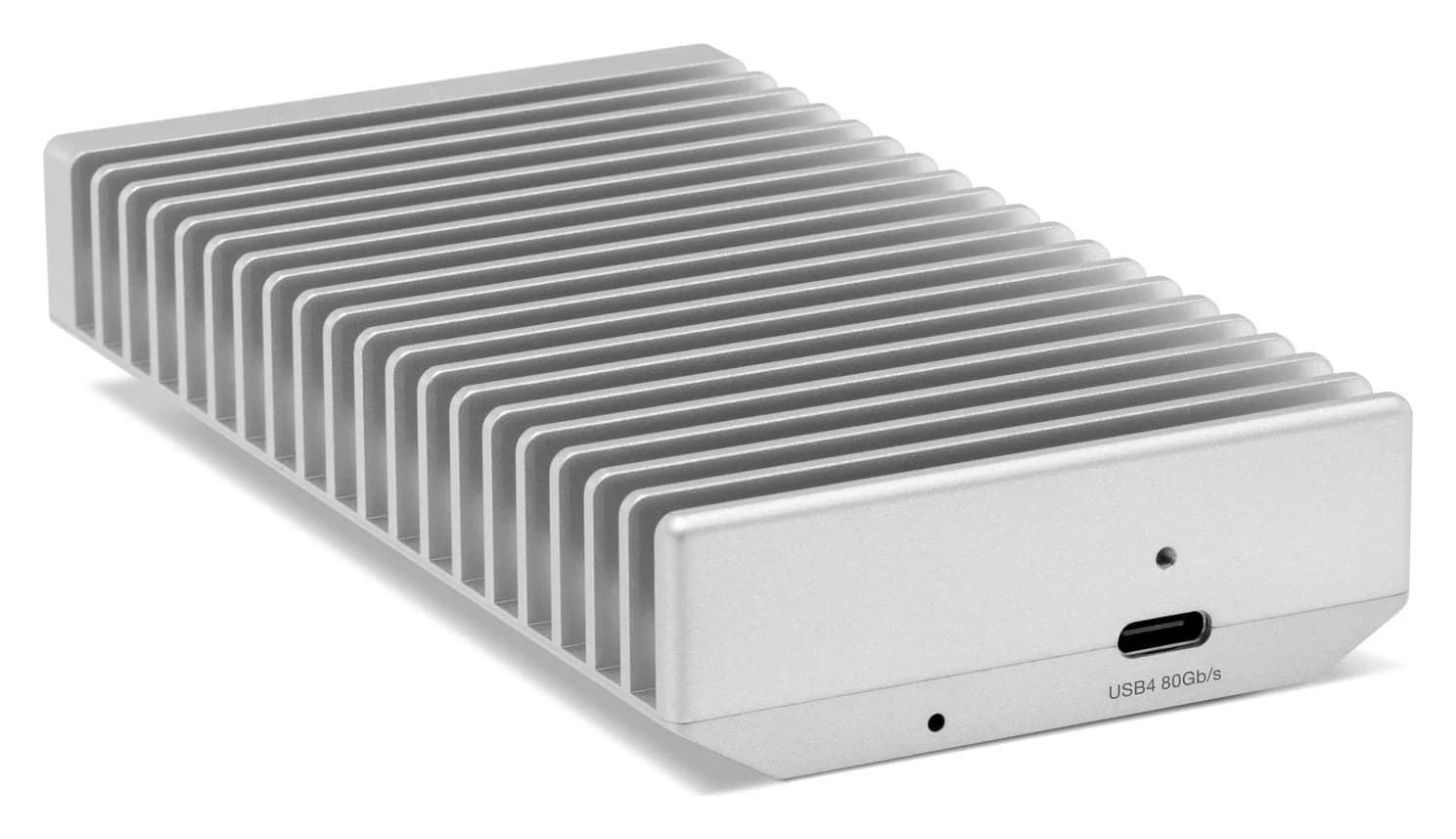

1x USB4 80Gb/s (USB-C)
Rated speed
Over 6,000MB/s on USB4 80Gb/s or Thunderbolt 5 hosts; over 3,800MB/s on USB4 40Gb/s; up to 3,800MB/s on Thunderbolt 4; up to 2,800MB/s on Thunderbolt 3 (Mac only)
Supported drives
NVMe M.2 2280 or 2242, single- or double-sided, PCIe Gen 3, Gen 4 or Gen 5 (not included)
Host requirement
PCs, Chromebooks and Surface devices need a Thunderbolt 4, Thunderbolt 5 or USB4 port
Power
Bus-powered; no adapter

What the specs mean for you

Data speed

80 Gbps

Thunderbolt/USB4 class: fast NVMe SSDs, docks and high-res displays over one cable.

Total ports

1

Compact: the essentials for travel or a light setup.

Why people pick it

  • One of the few 80Gb/s storage devices: rated over 6,000MB/s on Thunderbolt 5 and USB4 80Gb/s hosts
  • Still rated up to 3,800MB/s on Thunderbolt 4 and 40Gb/s USB4 ports
  • Fanless and bus-powered, with a tool-friendly design for your own 2280 or 2242 SSD
  • Can serve as a Mac boot drive

Know before you buy

  • Enclosure only: you supply the NVMe SSD
  • Not for plain USB 3 ports: OWC says PCs need Thunderbolt 4, Thunderbolt 5 or USB4
  • Short 0.3m cable in the box
  • OWC's 6,000MB/s figure was measured with its own Aura IV SSD; other drives vary

Full specifications

Interface1x USB4 80Gb/s (USB-C)
Rated speedOver 6,000MB/s on USB4 80Gb/s or Thunderbolt 5 hosts; over 3,800MB/s on USB4 40Gb/s; up to 3,800MB/s on Thunderbolt 4; up to 2,800MB/s on Thunderbolt 3 (Mac only)
Supported drivesNVMe M.2 2280 or 2242, single- or double-sided, PCIe Gen 3, Gen 4 or Gen 5 (not included)
Host requirementPCs, Chromebooks and Surface devices need a Thunderbolt 4, Thunderbolt 5 or USB4 port
PowerBus-powered; no adapter
CoolingPassive aluminum heatsink, no fan
In the box0.3m (12in) USB4 cable rated for 80Gb/s, screwdriver
FormattingShips APFS for Mac and iPad; reformat for Windows, ChromeOS or Linux
OS requirementmacOS 14 or later (Thunderbolt 5 needs macOS 15.3 or later); Windows 11 or later
Size and weight5.2 x 2.8 x 0.9in; about 9.9oz
Warranty2-year OWC limited warranty (enclosure only)

From manufacturer documentation, checked October 19, 2026. Spotted an error? Tell us.
