Anker Prime TB5 Docking Station (14-in-1, 8K, Thunderbolt 5)

A 14-port Thunderbolt 5 dock with a built-in power supply, 140W laptop charging, an HDMI 2.1 or DisplayPort 2.1 output and two downstream Thunderbolt 5 ports.

Check price on Amazon Compare
Anker Prime TB5 Docking Station, grey cube with blue light ring, front audio jack, power button, two USB-C and one USB-A port, with its Thunderbolt 5 cable
1 / 3 · hero · hover to zoom

Photo: Anker

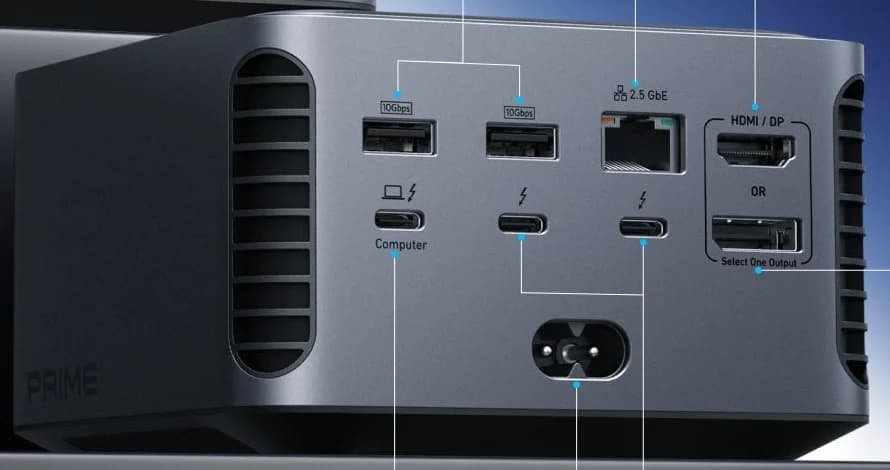

Ports & connections

Tap a port to see what it’s for.

What the specs mean for you

Laptop charging through the hub

140W

Enough to keep almost any laptop charging at full speed while you work, including 14-inch MacBook Pros.

Data speed

80 Gbps

Thunderbolt/USB4 class: fast NVMe SSDs, docks and high-res displays over one cable.

Display output

6K @ 60Hz

Smooth high-resolution output for a monitor or TV.

Total ports

14

A full desk’s worth of connections from one cable.

Why people pick it

  • Built-in HDMI 2.1 or DisplayPort 2.1 output, so one display needs no adapter
  • 140W host charging covers the 16-inch MacBook Pro's 140W adapter rating
  • Power supply is built in: just an AC cord, no external brick
  • Firmware updates through Anker's Dock Manager app

Know before you buy

  • HDMI and DisplayPort can't be used at the same time
  • Anker's notes say two external displays and no triple display, although its newest compatibility chart lists triple displays on M5 Pro/Max
  • Card readers are UHS-I, slower than the UHS-II readers on CalDigit and OWC docks
  • Tall cube with a fan; won't work with Thunderbolt 3 laptops

Full specifications

Host port1x Thunderbolt 5 upstream (up to 140W to the laptop, PD 3.1)
Downstream Thunderbolt2x Thunderbolt 5, 15W each
USB-C2x USB-C 10Gbps on the front (45W shared, no video)
USB-A3x USB-A 10Gbps (1 front, 2 rear)
HDMI1x HDMI 2.1 (cannot be used at the same time as the DisplayPort output)
DisplayPort1x DisplayPort 2.1 (cannot be used at the same time as the HDMI output)
Ethernet1x 2.5 Gigabit Ethernet
Card readersSD and TF (microSD), UHS-I
Audio1x audio combo jack (3.5mm)
Host chargingUp to 140W
PowerBuilt-in power supply (AC input; 6 ft AC power cord included)
In the box3.3 ft Thunderbolt 5 cable, 6 ft AC power cord
CoolingActive (fan) cooling
OS requirementmacOS 15 or later; Windows 10 or 11 (23H2 or later recommended)
Not compatible withThunderbolt 3 laptops and monitors, ChromeOS, Linux
Size and weight116 x 116 x 75mm; 1,086g
Warranty24 months

From manufacturer documentation, checked October 19, 2026. Spotted an error? Tell us.
