CalDigit

CalDigit TS5 Plus Thunderbolt 5 Dock (20 Ports, 10GbE)

A 20-port Thunderbolt 5 dock with 10 Gigabit Ethernet, a DisplayPort 2.1 output, two 80Gb/s Thunderbolt 5 ports and 140W laptop charging.

Check price on Amazon Compare

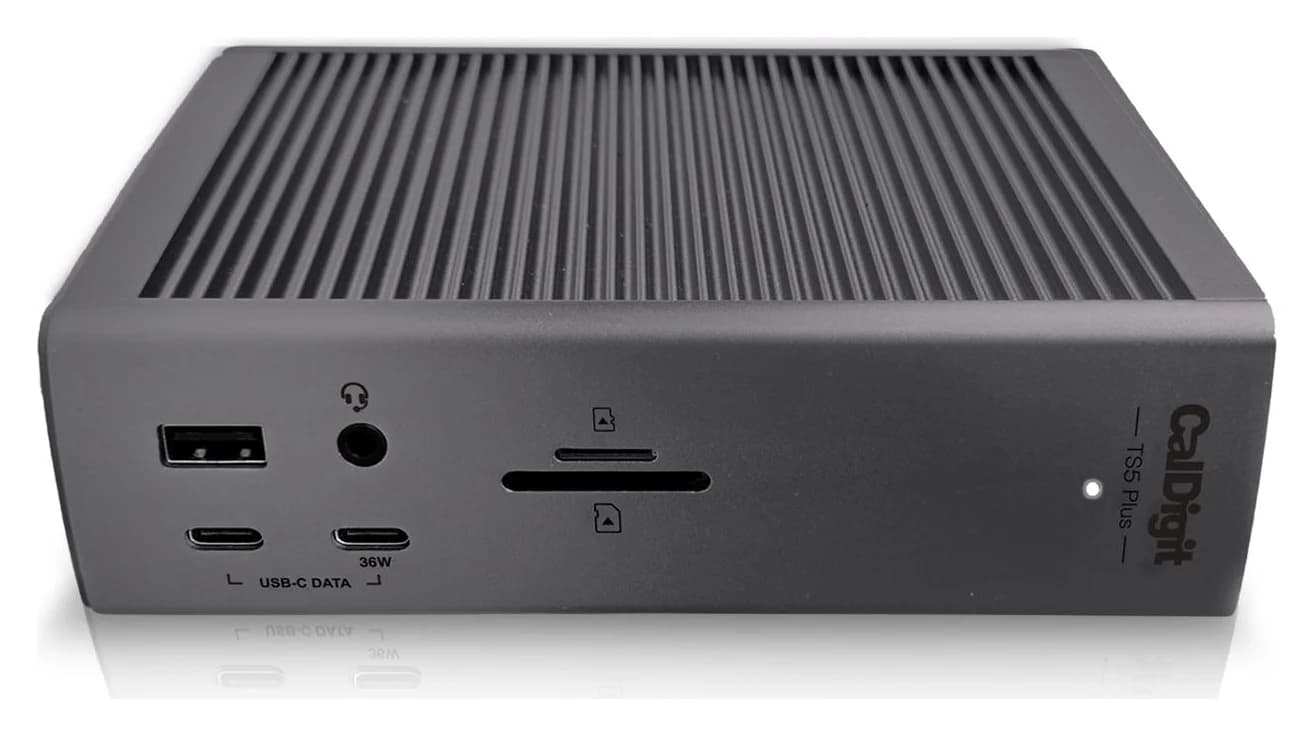

CalDigit TS5 Plus Thunderbolt 5 dock standing upright, front with SD and microSD slots, 36W USB-C, USB-A and audio jack
1 / 5 · hero · hover to zoom

Photo: CalDigit

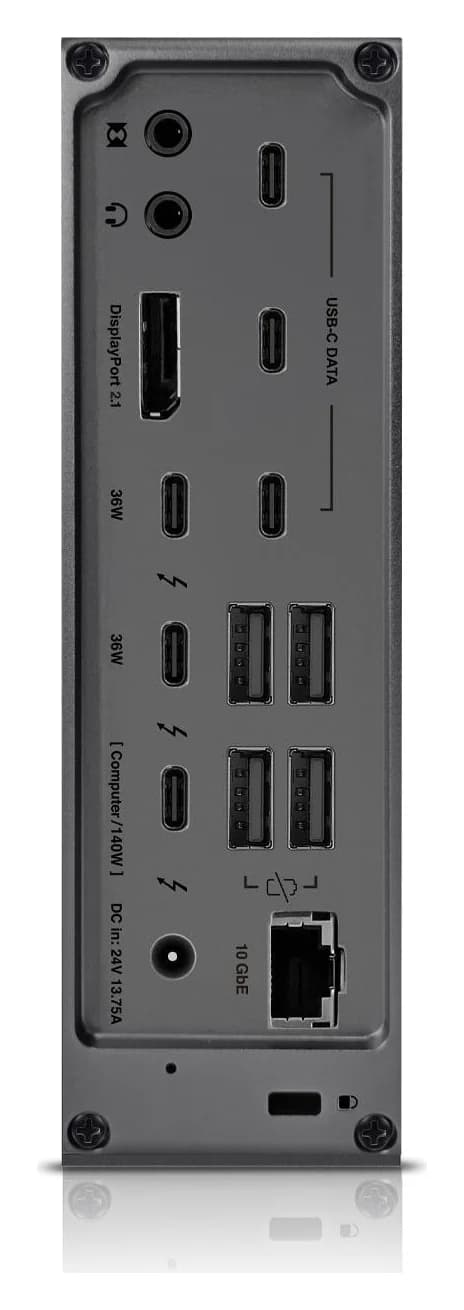

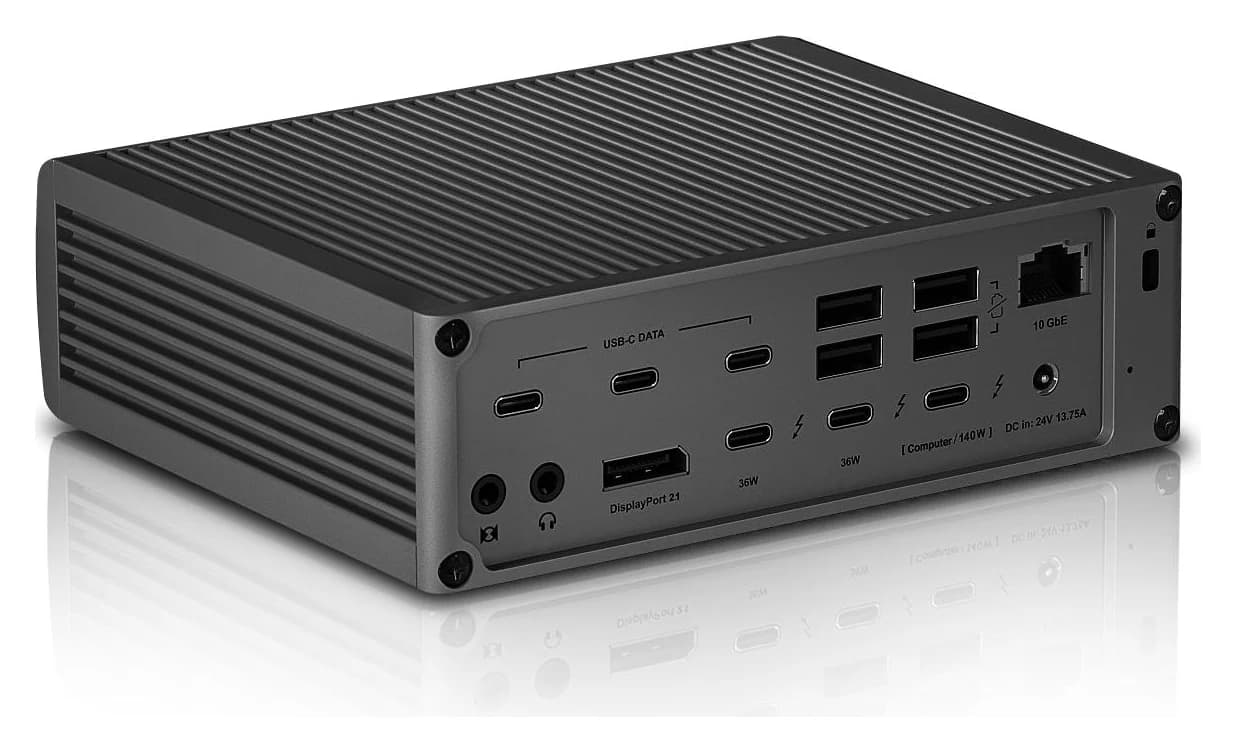

Ports & connections

Tap a port to see what it’s for.

What the specs mean for you

Laptop charging through the hub

140W

Enough to keep almost any laptop charging at full speed while you work, including 14-inch MacBook Pros.

Data speed

80 Gbps

Thunderbolt/USB4 class: fast NVMe SSDs, docks and high-res displays over one cable.

Display output

1x DisplayPort 2.1 plu

Supports an external display. Check the resolution you need.

Total ports

20

A full desk’s worth of connections from one cable.

Why people pick it

  • 10 Gigabit Ethernet built in, for fast NAS and studio networks
  • DisplayPort 2.1 output plus two Thunderbolt 5 ports, so an M5 Pro can run three displays and an M5 Max four from one cable
  • 140W host charging matches the 16-inch MacBook Pro's 140W adapter
  • Ten 10Gb/s USB ports split across two USB controllers

Know before you buy

  • No HDMI port; HDMI monitors need a USB-C or DisplayPort to HDMI adapter
  • Large 330W external power supply
  • Windows needs CalDigit's 10GbE driver, and USB4 hosts need PCIe tunnelling for Ethernet and the second USB controller
  • Thunderbolt 5 speed needs a Thunderbolt 5 host; base M5 MacBook Pros connect at Thunderbolt 4 speed

Full specifications

Host port1x Thunderbolt 5 (up to 120Gb/s with Bandwidth Boost, 140W to the laptop)
Downstream Thunderbolt2x Thunderbolt 5, 80Gb/s, 36W each
USB-C5x USB-C 10Gb/s (front port 36W, the other four 7.5W)
USB-A5x USB-A 10Gb/s, 7.5W each
DisplayPort1x DisplayPort 2.1
Ethernet1x 10 Gigabit Ethernet (also runs at 5, 2.5 and 1 Gigabit)
Card readersSD 4.0 and microSD 4.0 (UHS-II), usable at the same time
Audio3x audio jacks (3.5mm: front combo in/out, rear line in, rear line out)
Host chargingUp to 140W
Power supply330W external (24V 13.75A DC in)
PCIe bandwidth64Gb/s PCIe 4.0; CalDigit quotes external storage up to 6,200MB/s
USB controllersTwo independent 10Gb/s controllers (the second needs a Thunderbolt host or a USB4 host with PCIe)
Cable1.0m Thunderbolt 5 braided cable included
OS requirementmacOS 15 or later; Windows 11 or later (Thunderbolt 4 or newer, Intel 12th Gen or newer)
Not compatible withThunderbolt 3 Windows PCs, and 5Gb/s or 10Gb/s USB-C hosts
Size and weight155 x 47 x 127.9mm; 0.90kg
Warranty2 years

From manufacturer documentation, checked October 19, 2026. Spotted an error? Tell us.
