CalDigit TS5 Thunderbolt 5 Dock

A 15-port Thunderbolt 5 dock with three downstream 80Gb/s Thunderbolt 5 ports, 2.5GbE, UHS-II readers and 140W laptop charging.

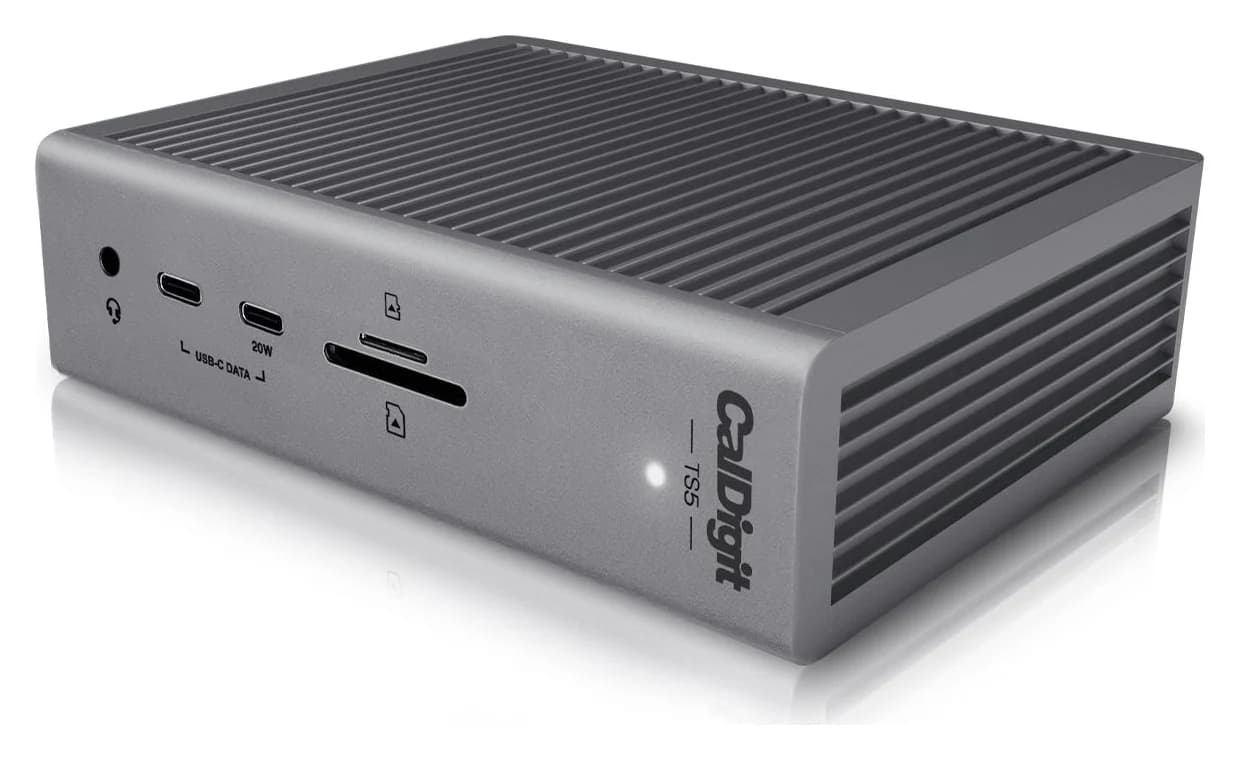

CalDigit TS5 Thunderbolt 5 dock standing vertically, front with SD/microSD, USB-C and audio ports
Front · 1 of 7 · hover to zoom · tap to enlarge

Photo: CalDigit

Ports & connections

Tap a port to see what it’s for.

Features

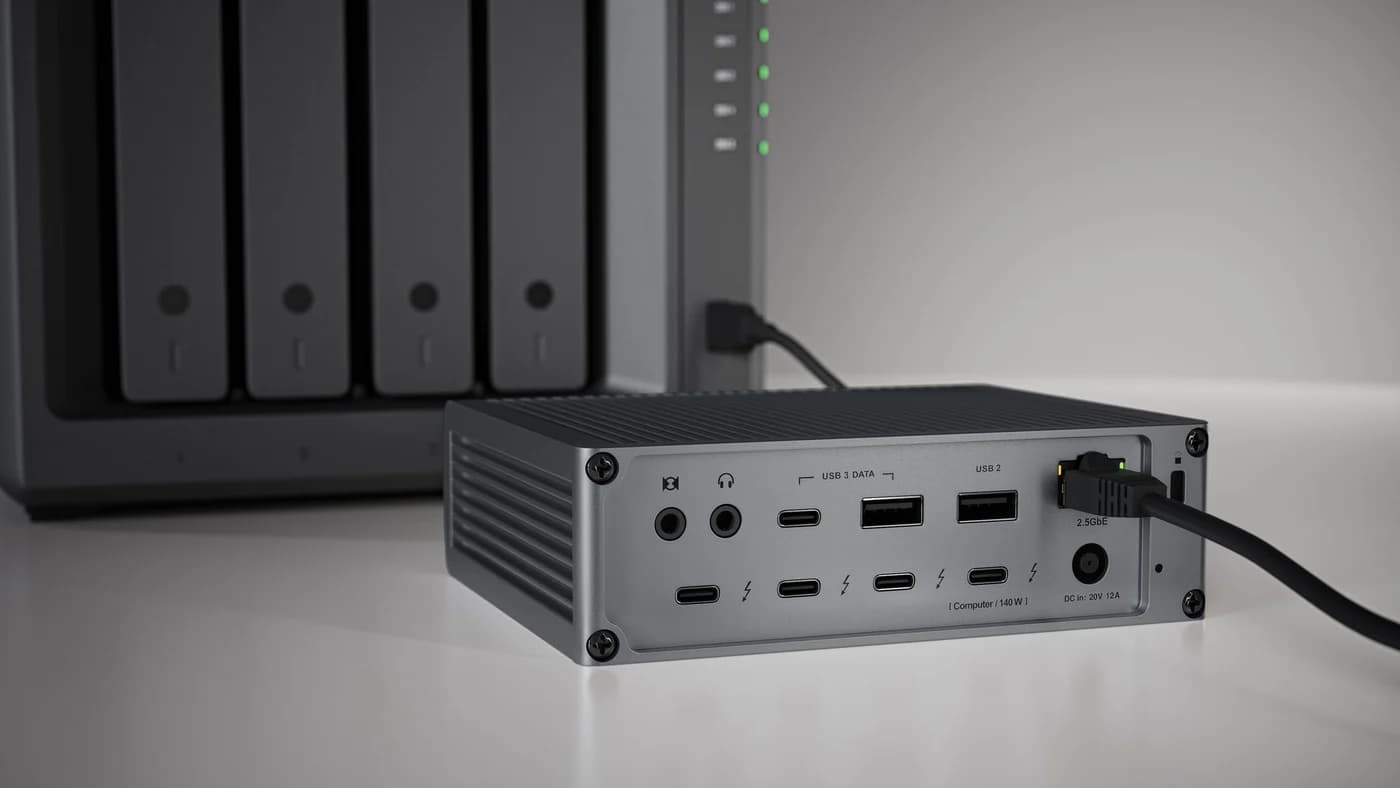

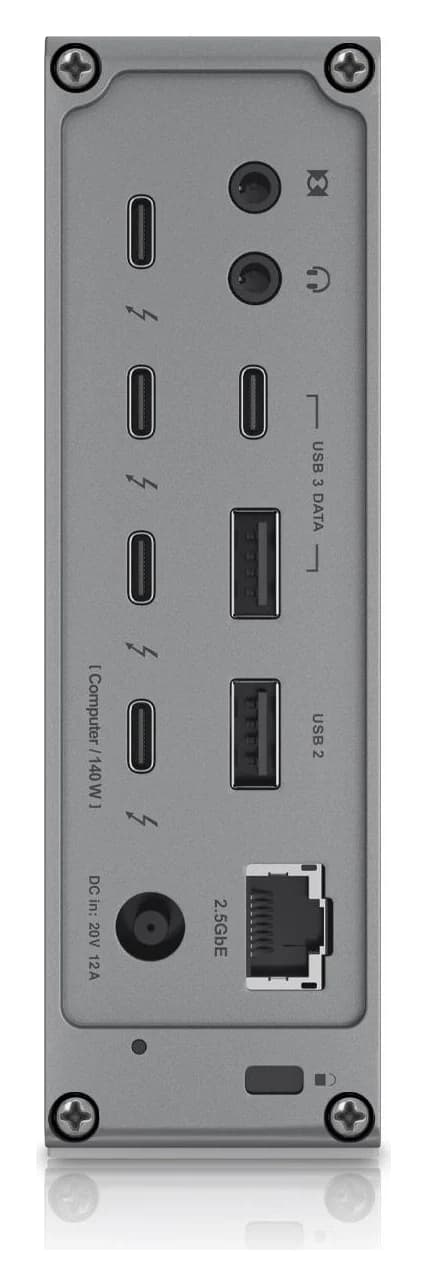

CalDigit TS5 rear panel: four Thunderbolt 5 ports, USB-C, two USB-A, 2.5GbE, audio and DC in

Ports

Three 80Gb/s downstream ports for fast storage and displays

What the specs mean for you

Laptop charging through the hub

140W

Enough to keep almost any laptop charging at full speed while you work, including 14-inch MacBook Pros.

Data speed

80 Gbps

Thunderbolt/USB4 class: fast NVMe SSDs, docks and high-res displays over one cable.

Display output

Via Thunderbolt 5 port

Supports an external display. Check the resolution you need.

Total ports

15

A full desk’s worth of connections from one cable.

Why people pick it

  • 140W host charging covers a 16-inch MacBook Pro
  • Works with TB4 and USB4 laptops too

Know before you buy

  • No HDMI or DisplayPort; displays connect through Thunderbolt/USB-C
  • Thunderbolt 5 speed needs a Thunderbolt 5 host
  • Base M1-M3 Macs still get one external display

Full specifications

Host port1x Thunderbolt 5 (up to 120Gb/s with Bandwidth Boost)
Downstream Thunderbolt3x Thunderbolt 5, 80Gb/s, 15W each
USB3x USB-C 10Gb/s (one 20W front port), 1x USB-A 10Gb/s, 1x USB-A USB 2.0
Ethernet2.5GbE
Card readersSD 4.0 and microSD 4.0, UHS-II
Audio3x 3.5mm jacks (front combo in/out, rear in, rear out)
Host charging140W
Power supply240W
Cable1.0m Thunderbolt 5 braided
OS requirementmacOS 15+ or Windows 11+
Warranty2 years

From manufacturer documentation, checked September 27, 2026. Spotted an error? Tell us.
